ECU Information

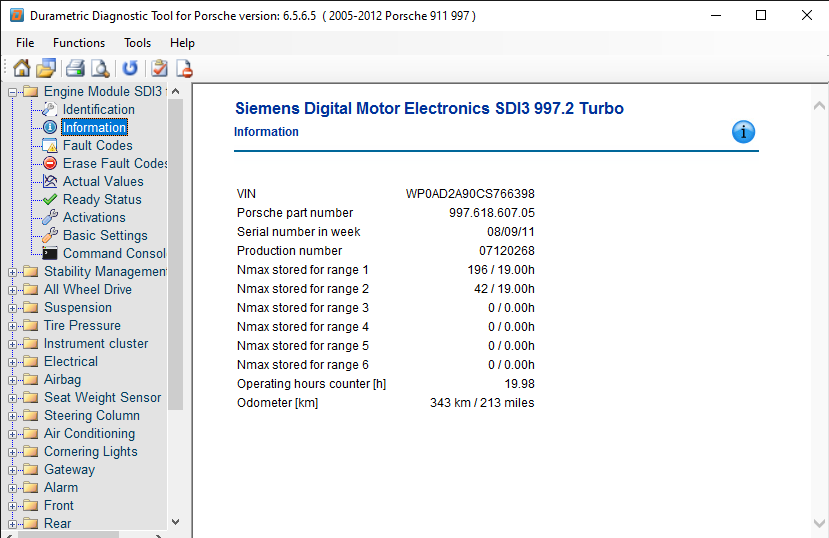

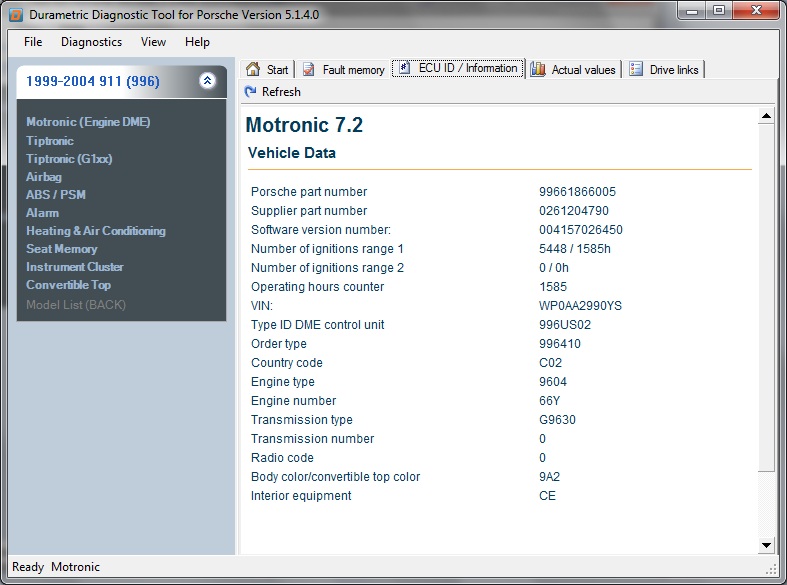

Some modules are capable of displaying information about the car that is not fault related. Sometimes this information is nothing more than the part number or firmware number, but in some cases it displays a lot of interesting information about the vehicle. To access this information click on "ECU Identification".

Motronic 7.8 Vehicle Information:


Motronic 7.8.1 2006 Boxster Vehicle Information. Notice the 6 igntion ranges.


The 6 ranges can be broken down as:
Range 1: 7300-7500 RPM
Range 2: 7500-7700 RPM
Range 3: 7700-7900 RPM
Range 4: 7900-8400 RPM
Range 5: 8400-9500 RPM
Range 6: 9500-11000 RPM

The number is the number of ignitions in each of these ranges.
The factory PIWIS tool does not display the hours for each of these ranges but the informaiton is available so we display it here. The hour indicates the last operating hour that this range occured in.
